*** "De Voorst - 1970 - 1981" ***

de Voorst - early 70's
Aerial view of "De Voorst" in the early 70's
In front the "Brouwers and Oosterscheldeloods" and "M-1000-1001" building at the right
Nowadays this lower section is totally stripped and cleaned. In use for agricultural purposes by private owner
Natuurmonumenten (DNR-Nature) is in control of the rest since 31 Dec 2002 - move cursor over image

click here: NATUURMONUMENTEN (opens in new window) - maintained by Natuurmonumenten

Several hydraulic scale models in a woodland area.
The "Easter Scheldt" hall - right below - used
to investigate parts of the "DELTA PLAN".
There is a 20 feet difference of the water levels - top vs right -
controlled by dikes and locks.
The outskirts of Vollenhove "Old Land" is seen top left. See also one of my FS-images
A 15-20 minutes ride on my bicycle - since Aug 1st, 1967 - brings me to the so-called "New Land"

Here a timelapse with historic aerial photos - Vollenhove is in the NE -
"1947-1949-1960-1971-1981-1989-2000-2003-2006"

The NorthEastPolder - reclaimed in 1940 - part of the Province of Flevoland. since 1986.
A typical "DUTCH" scenery.

Try this site to read about RIJKSWATERSTAAT"

de Voorst - 1981
Area Vollenhove - 1981 - - - - - - - - - - - PATS - location 1996 - 2017

@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @

Hierbij doe ik, Abe Hoekstra (oud-medewerker van Het Waterloopkundig Laboratorium van 1966-1996),
een poging om een deel van de geschiedenis van het Waterloopkundig Laboratorium "De Voorst" in de Noordoostpolder vast te leggen.
Het Waterloopkundig Laboratorium heeft een deel van het Voorsterbos in gebruik gehad vanaf 1951 voor het doen van modelonderzoek
en heeft dit terrein verlaten in 1996. Dit deel van het bos is nu vooral bekend onder de naam Waterloopbos.

1951 - WATERLOOPKUNDIG LABORATORIUM - 1996

Aerial view - Luchtfoto terrein Waterloopkundig Laboratorium in 1969
Aerial view - Luchtfoto terrein Waterloopkundig Laboratorium in 1969
source: waterloopbos.net - by Abe Hoekstra
Move cursor over image to see my (Teunis Schuurman) first locations at the laboratorium

click here: Waterloopkundig Laboratorium > > > Waterloopbos (opens in new window) - maintained by Abe Hoekstra
Abe Hoekstra is a former employee (1966-1996) of HET WATERLOOPKUNDIG LABORATORIUM

@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @

1996 - WATERLOOPBOS - 2017

clik here: Waterloopbos (opens in new window) - maintained by Meijerink - Voorsterweg


@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @

Op pad met "de Heer van de Waterweg"

In het Voorsterbos in de Noordoostpolder werden waterwerken uitgetest op schaal.
Tot de ingenieurs verdwenen, en de modellen overwoekerd raakten.
Langzaam maar zeker wordt het bos weer in ere hersteld. Kennislink ging kijken.

In 1996 verlieten de ingenieurs en medewerkers het Voorsterbos.
De nieuwe eigenaar was een projectontwikkelaar die er een bungalowpark van wilde maken.
Maar dat ging gelukkig niet door, vertelt Ton van der Meulen. In 2002 ging het bos, met behulp van geld van de Postcodeloterij,
over in handen van Natuurmonumenten. In 2005 ging het open voor publiek. Inmiddels staat het Waterloopbos op de voorlopige lijst
van Rijksmonumenten uit de opbouwperiode van 1959 tot 1965.
De definitieve plaatsing zal vermoedelijk dit jaar zijn beslag krijgen, denkt Van der Meulen.
En dan kunnen er eindelijk plannen gemaakt worden om de bouwwerken in het bos te restaureren.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
clip source: nemokennislink.nl/publicaties/op-pad-met-de-heer-van-de-waterweg - by Marlies ter Voorde - 07 Jan 2016

H     E    T         W     A    T    E    R    L     O     O     P     B     O     S
HET WATERLOOPBOS - 'Kleine' Klaas ten Napel
- - - - - HET WATERLOOPBOS - - - - - - - - - - - - - - - - "Kleine" Klaas ten Napel at M 918 - - - - - - - - - - - - - - -
Hardcover - 240 pages - ISBN 978-94-92474-07-0 - uitgeverijblauwdruk.nl
issued 13 Jun 2017
Was with the brothers "Grote" and "Kleine" Klaas ten Napel on several projects - info PATS
- . - . -

Intersection Voorsterweg / Deltaweg
DELTAWEG
WELKOM - Waterloopbos TOT ZIENS - Waterloopbos
Welkom in het Rijksmonument Waterloopbos                           -                Tot Ziens!                -
images by PATS - 09 Apr 2017

Sign is just 180m from my office ;) - info PATS
- . - . -

Above is a general intro for the area I'm present since 1967

Next ..... I'll try to fill in my timeline at the Laboratory (area)
a milestone of 50 years !


@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @

scrapbook

"S T R A T E M A K E R   O P   Z E E"

- curriculum vitae - Teunis Schuurman a.k.a. PATS -

@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @


Teun - 1953 - Header WL 50 jaar - 1967 - 2017
1953 - My affinity with sand ;) -

TIMELINE - PATS - 1967 - 2017


Did start on 01 Aug 1967 at this location till 01 Oct 1996 with WL
..... and I'm still there from 1996 as PATS ;)

- days - at this inspiring location

* * * 1969 - 1971 * * *

On August 1st, 1967 I, Teunis Schuurman a.k.a. PATS
did start at Het Waterloopkundig Laboratorium (WL|Delft Hydrauclics)
after I got my MULO-B diploma prior to that on June 20th, 1967 in Zwolle
First based at the tiny office "Nieuwe-Waterwegkeet" with ir. Ton van der Meulen and ir. Wijnand Hendrik Tutuarima

1967 - Guilder / Gulden / Hfl. (Hollandse Florijn)
Salary for 1967 was Hfl. 3624 guilders . . . Hfl. 302 per month
Hfl. 69.69 per week (Hfl. 1.74 per hour) . . . € 31.62 per week = € 0.79 per hour

Mulo B
clip - mulodiploma b - Teunis Schuurman - Zwolle, 20 June 1967
Chr. HBS - Emmeloord - 1962 - 1964 - Class 1C, 1D - see: klas-63-64.htm
MULO-B - Vollenhove - 1964 - 1967 - Class 2, 3 and 4 - see: klas-63-67.htm
- . - . -

E U R O P O O R T L O O D S - Mp16
M 849 - Situation scale model in the Europoortloods
M 849 - Situation scale model in the Europoortloods

M 849 - Layout scale model with 'stroombeeld' T17 (current pattern T17) as overlay
M 849 - Layout scale model with 'stroombeeld' T17 (current pattern T17) as overlay
Color and overlay done by PATS - 19 Jul 2017
M 1284 - ANDOC tests were done in TANK 1 in 1974
. . . . . . . . . . . . . . . . . . . . . . . . .
source: Report M 849-I & M 849-II - via Library Deltares - 18 Jul 2017
- . - . -

E U R O P O O R T L O O D S - Mp16
Laars-l M 849 - Europoortloods - 1967 Laars-r
M 849 - EUROPOORT - 1967
ir. Wijnand Hendrik Tutuarima
Most essential were the rubber boots "modellaarzen","lieslaarzen" or "waadbroek" to get around the "wet" hydraulic scale models in all those years
In my case size 46 ½ EUR - 12 USA - 11 ½ UK
. . . . . . . . . . . . . . . . . . . . . . . . .
image source: waterloopbos.net - by Abe Hoekstra
- . - . -

I was assistant a.k.a. "rekenaar" on M 849 (Europoort) - Europoortloods-Modelplaats 16 (Mp16) together with Roelof Hulleman as "modelarbeider"
Later on the scale models on Mp6 behind the "Timmerwerkplaats" - known as M 936 (Duinafslag door stormgolven (1966)) and M 963 (Vlissingen)

V L I S S I N G E N - Mp6
M 963 - Situation scale model Vlissingen
M 963 - Situation scale model Vlissingen - six wave generators in overlay
ir. Wijnand Hendrik Tutuarima
source: Report M 963 - via Library Deltares - 18 Jul 2017
- . - . -

S I T U A T I O N - END 1967
Terrain - Terrein Waterloopkundig Laboratorium - Modelplaatsen - situation end of 1967
Terrain - Terrein Waterloopkundig Laboratorium - Modelplaatsen - situation end of 1967
See "Waterwegkeet" near M 873
. . . . . . . . . . . . . . . . . . . . . . . . .
source: "Verslag over het jaar 1967" - collection PATS

The slide rule, or slipstick, is a mechanical analog computer
Rekenliniaal
Rekenliniaal . . . . . First computer without harddisk, memory and back-up :) . . . . .
Used for crunching the numbers, in the mid 70's replaced by a handheld HP-calculator on rental base (later permanent)
. . . . . . . . . . . . . . . . . . . . . . . . .
My slide rule type 1/70 was brand FABER-CASTELL (made in Germany) - still have 1/87 in my collection - info PATS
- . - . -

A follow-up M 918 - Fundamenteel onderzoek werking strandhoofden (1968) (Modelplaats 18 - Mp18) - was located more to the west,
along the bicycle-track, just after de Nieuwe-Maas scale model M 998 (Modelplaats 12 - Mp12) - with Johannes Dikken as "modelarbeider"
M 998 was from the division "Rivieren en Scheepvaart" - RISC, my division was "Havens en Kusten" - HAKU

M 918 - 1970 - end of 1970 (T23 - T25)
M 918 - 1970 - end of 1970 (T23 - T25)
Model view with "meethok" (shelter while reading soundings)
and "modelkeet" (office) in the middle
Soundings in mm were initial done with 3 persons, later with 2 persons (incl. tape-recorder)
Person on the left could be ing. Hendrik Jan Maalderink - info PATS - (need to be verified)
. . . . . . . . . . . . . . . . . . . . . . . . .
image source: waterloopbos.net - by Abe Hoekstra
- . - . -

* * * 1969 * * *

O O S T E R S C H E L D E L O O D S - Mp37
Oosterscheldeloods - photo via Joop Ouderling
Oosterscheldeloods with detail Oosterschelde scale model - M 822
Was not assistant on this scale model, but lend a hand occasionally
when they needed extra manpower for taking multiple water samples at one moment
also other colleagues were notified to show up temporarily - info PATS

. . . . . . . . . . . . . . . . . . . . . . . .
photo via Joop Ouderling - 28 Jun 2017

Breakwater scale model of Manfredonia was investigated in this hangar building

M A N F R E D O N I A - I T A L Y - Mp 37
M 1061 - Manfredonia - location and depth contours - clip of Fig. 1
M 1061 - Manfredonia - location and depth contours - clip of Fig. 1
source: Report M 1061 (Jul 1970) - via Library Deltares - 05 Jul 2017

M 1061 - Manfredonia - comparison wave-height (Hydraulic versus Mathematical)
M 1061 - Manfredonia - comparison wave-height (Hydraulic versus Mathematical)
. . . . . . . . . . . . . . . . . . . . . . . . .
source: Modeltechniek - rapport V 24 - april 1973 - via Joop Ouderling - 28 Jun 2017

M 1061 - Manfredonia, Italy - Wave penetration harbour Manfredonia
Authorized by Snam Progetti Spa Milan, 13 Nov 1969 - Report July 1970
New Industrial Harbour Manfredonia
Testing breakwater design ..... remember they were painted orange
ir. Jentje van der Weide, ir. Ad Wevers and Lou Verhage
. . . . . . . . . . . . . . . . . . . . . . . . .
source: Report M 1061 (Jul 1970) - via Library Deltares - 05 Jul 2017
- . - . -

* * * 1970 * * *

Authorized by R.W.S., letter 18 Jul 1966 - kenmerk 1877
. . . . . . . . . . . . . . . . . . . . . . . . .
M 918 - Test T0 - T34 were carried out from March 1968 to December 1971
ir. C. H. "Kees" Hulsbergen, ing. H. J. Maalderink and ir. D. H. "Herman" Swart from South-Africa (Dirk Hermanus Swart)
T0 - T8 (1968), T9 - T18 (1969), T18A - T25 (1970) and T26 - T34 (1971)
I was there certainly till the transfer to M 1070 - Borssele
An outside scale model did not operate when temps were below zero Celcius with ice conditions
Mostly temporarily suspended during the winter period - - - model under "winterpeil"
M 1061 - Manfredonia inside scale model in the Oosterscheldeloods was not affected by the weather

W I N D - F L U M E   A N D   C U R R E N T - F L U M E - Mp39
Wind- en Stroomgoot on the Repelweg - Waterloopkundig Laboratorium - (c) Abe Hoekstra
Wind- en Stroomgoot on the Repelweg - Waterloopkundig Laboratorium
In all those years till early 80's, several tests done in the Windgoot, Stroomgoot, Zandgoot and Tussenpadgoot
At the moment, hard to find out all those specific numbers related to me - info PATS
. . . . . . . . . . . . . . . . . . . . . . . . .
image by (c) Abe Hoekstra
The building has been broken down - info PATS
- . - . -

SANBORN 322 chart recorder with assistant Cor Hofland
SANBORN 322 chart recorder with assistant Cor Hofland
. . . . . . . . . . . . . . . . . . . . . . . . .
photo via Cor Hofland - 01 Aug 2017
- . - . -

'Jonswap' wave recording - example of 'irregular' wave in 1979
Together with other assistants we did a lot of handwork in that time - a.k.a. "turven" of wave recordings
One of the known "turf" locations was in the assistants-room of the Wind-flume
Above recording is a "Jonswap" example of irregular waves, regular waves was more common in early days,
but the output on the "Sanborn or HP Chart recorder" was almost identical ;)

- . - . -

M O D E L P L A A T S - 1 8 - Mp18
HIJDRO DELFT no. 47 - Dec 1976 - cover - fluorescent in water M 918 - 01 Oct 1970 - and layout
HIJDRO DELFT no. 47 - Dec 1976 . . . . . . . . . . . . . . . . . . . . . . . . . M 918 - 01 Oct 1970
Eight wave generators, type "Van der Graaf" (regular waves), under an angle of 10 degrees
. . . . . . . . . . . . . . . . . . . . . . . . .
source: HIJDRO DELFT no. 47 - Dec 1976 - page 8

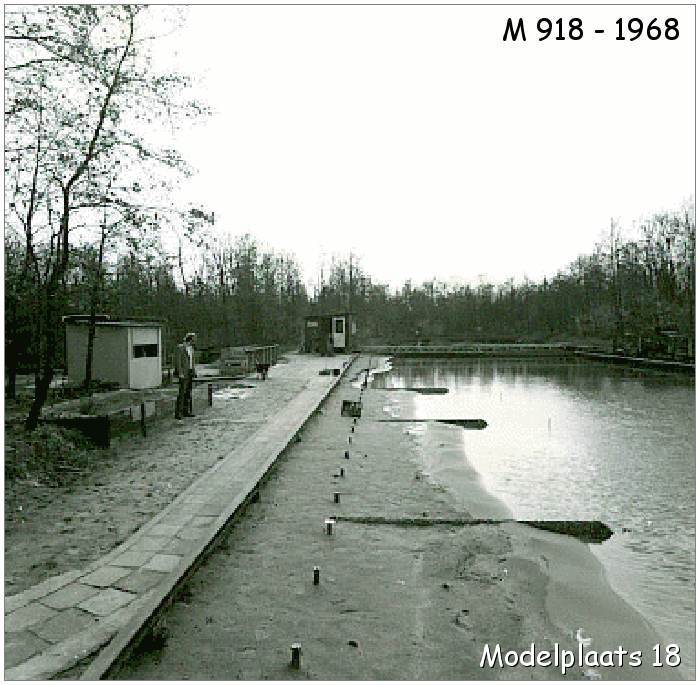

M 918 - 'modelkeet' model office with 4 windows in front
M 918 - "modelkeet" model office with 4 windows in front
On every scale model you could find this kind of units, which came in two sizes (2-4 windows)
See also the bicycles in front of office, used to get around the laboratory or to the main-office

Year around in the middle of mother nature, hard to beat ;)


M 918 - Test T 15 with groyne - 1969 (colors added by PATS in 2017)
M 918 - recap - 1968 - 1971
M 918 - recap - 1968 - 1971
35 tests were done in a four year period, the duration of wave conditions was a total of 1381 hrs and 15 min
Soundings in mm were done along predefined lines, points were 20 cm apart (even 10 cm near waterline or critical areas)
Contour maps were made manual, difference charts and profiles were derived from these base maps
I had no computer on my desk that time, it was al done by hand !!!
Computer was likely used in a 2nd review for charts and profiles, but never for the soundings in this scale model
. . . . . . . . . . . . . . . . . . . . . . . . .
source: Report M 918-IA, IB, IC (Mar 1976) - via Library Deltares - 19 Jul 2017
- . - . -

Kees Hulsbergen, Willy ter Horst, Klaas ten Napel "Kleine Klaas", Geuje van der Linde "de Fiete", Gerard Jongman,
?Henk Jan? Maalderink, Ep Visscher and Klaas ten Napel "Grote Klaas" are names I do remember from those early days,
there are way more, like several "pratikanten" (de Roos) which were there only for a few months
as being on those scale models for Modelplaats 6 - Mp6, etc ... in that first period of Aug 1967 - Sep 1971
. . . . . . . . . . . . . . . . . . . . . . . . .
ing. Willy ter Horst did start on 01 Nov 1967 at WL
ir. Kees Hulsbergen did start in March 1968 (first office was "Waterwegkeet")
ir. Herman Swart did start on 15 Mar 1970 at WL
- . - . -

DE VOORST - ir. Joannes "Jo" Jacobus Vinjé - 1928 - 2013 (84), plv. Daan Gersie
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ASLU - AFSLUITINGSWERKEN - ir. Ton van der Meulen
HAKU - HAVENS EN KUSTEN - ir. Riemer Reinalda - 1929 - 2009 (79)
HYMO - HYDRODYNAMICA EN MORFOLOGIE - ir. Egge Allersma - 1928 - 2000 (70)
MACO - MARITIEME CONSTRUCTIES - ir. Jentje van der Weide
RISC - RIVIEREN EN SCHEEPVAART - Daan Gersie
. . . . . . . . . . . . . . 01 JUL 1970 . . . . . . . . . . . . . . . .
- . - . -

BANGKOKLOODS - 3340 m2 - built in 1962 - (cc)
EUROPOORTLOODS - 560 m2 - 1964 - (cc)
OOSTERSCHELDELOODS - 3440 m2 - 1965 - (cc)
BROUWERSLOODS - 4730 m2 - 1966 - (cc)
DUWVAARTLOODS - 1940 m2 - 1966 - (canal water)
LOODS GOLFBAK - 1620 m2 - 1968 - (canal water)
OOSTERSCHELDEHAL - 25280 m2 - 1969 - (cc)
. . . . . 40910 m2 total inside scale models . . . . .

The outside scale models were vulnerable for weather circumstances and water quality ( leaves and dirt in canal water )
During wintertime all were flooded, so-called "winterpeil", to protect the concrete from frost damage
Over the years, the new measurement tool "micromolen" was more fragile as it's predecessor "ott-molen"
The water in most inside scale models was in a closed circuit (cc) with tap, filtered or ground water
red Kaliumpermanganat (KMnO4)/Potassium permanganate
and yellow fluorescent powder was used to determine intake, discharge, currents (fresh/salt) and other behaviours
- . - . -

* * * 1971 * * *

B O R S S E L E - Mp33
M 1070 - Borssele scale model - Design I
M 1070 - Borssele scale model - Design I
source: Report M 1070 - via Library Deltares - 05 Jul 2017

M 1070 - Borssele scale model with PATS - 1971 M 1070 - Borssele scale model layout - Flood
M 1070 - Borssele scale model with PATS - Summer 1971
Borssele scale model with myself on the "meetbrug" measurement bridge
A "stroommodel" current scale model, the small bank section (top-left) did give me the indication for Borssele ;)
Borssele - info PATS - 16 Jul 2017
. . . . . . . . . . . . . . . . . . . . . . . . .
photo collection PATS

M 1070 - Borssele - Modelplaats 33 (Mp33)
First ir. Albert Zwols, later ir. Jan van de Graaff who also wrote the report
Report March 1973 - intake "Bieb" Delft 05 Apr 1973
With Derk Leeuw and Bennie Beld as scale model labourers
Tests were carried out from September 1970 till June 1972
Scale model Borssele was likely two times under "winterpeil" winter level
I was there till at least till Friday, September 10th, 1971
. . . . . . . . . . . . . . . . . . . . . . . . .
On 01 May 1974 - ir. Albert Zwols - 1940 - 2010 (69) left WL
- . - . -

* * * 1971 - 1973 * * *

Draft - 13 Sep 1971 - 23 Feb 1973 - I was in the Army - Koninklijke Landmacht (71-5) - 500903452
Ermelo SKORI - Jan van Schaffelaerkazerne - 6 months training NCO - promoted to Sgt.
13 September 1971 - SROKI - Ermelo - 25 February 1972
MENNO van COEHOORN MENNO van COEHOORN MENNO van COEHOORN
Havelte - Johannes Postkazerne - 12 months - 47 PAINFBAT - OST Cie - OST Cie - TLV
28 February 1972 - 47.I - OST.cie - Havelte - 23 February 1973
. . . . . . . . . . . . . . . . . . . . . . . . .
Monday 26 February 1973 back at WL - info P.V. Nieuws via Cor Hofland
. . . . . . . . . . . . . . . . . . . . . . . . .

Checking the laboratorium area I try to recollect all locations I was working in all those years
First on the outside scale models, later inside scale models and finally at the main-office Voorsterweg 28

1972: Hewlett-Packard pioneers the era of personal computing with the first scientific hand-held calculator,
the HP-35, which makes the engineer's slide rule obsolete

Z    A    K    J    A    P    A    N    N    E    R
HP 11C - 1982
HP 11C - 1982 - LR44/SR44/357 battery (3x)
LR44 is an alkaline 1.5 V battery - do not use alkaline, they can leak !!!
SR44 is a silver oxide battery - always use silver oxide
Many generic packages will list both AG13 and 357 on the label
. . . . . . . . . . . . . . . . . . . . . . . . .
Still have this working HP 11C on my desk - info PATS
- . - . -

* * * 1973 * * *

D O D E W A A R D - Mp24
M 1189-I - Dodewaard
M 1189-I - Centrale Dodewaard - Lay-out scale model
"Grote" Klaas ten Napel on the right and assistant Klaas de Lange who does place the "photo-timer-clock"
Klaas de Lange - (01 Aug 1967 - 30 Nov 1970) - (30 Aug 1972 - 28 Feb 1973) - info P.V. Nieuws via Cor Hofland

M 1189-I - T4 - 1200 - 100 m3/s
M 1189-I - T4 - 1200 - 100 m3/s

Authorized 19 May 1972 by PGEM
Scale model tests were carried out in the period August 1972 - May 1973 - Report I (Oct 1973)
March, April and May 1973 are only applicable for me - info PATS
ir. J. G. "Johan" Grijsen, "Grote" Klaas ten Napel
. . . . . . . . . . . . . . . . . . . . . . . . .
source: Report M 1189-I - via Library Deltares - 27 Jul 2017
- . - . -

S J A B L O O N
Sjabloon 203/2,5 STANDARDGRAPH PEN U 52
Sjabloon    203 / 2,5    STANDARDGRAPH    PEN  U  52
I was on the "Bouwbureau" in the "Bangkokbungalow", were I did drawn construction drawings due lack of capacity
One of the scale models was M 1189 - Dodewaard on which I was the assistant too
The modifications in concrete along the river Waal were done under my supervision
Over the years I was a few times back on the "Bouwbureau" to assist in designing and building small scale models
. . . . . . . . . . . . . . . . . . . . . . . . .
ing. Jaap Venema, Marinus de Lange, Dingeman Blokland and Jelt Harsevoort
. . . . . . . . . . . . . . . . . . . . . . . . .
Jelt Harsevoort left WL after eight years on 01 Aug 1973 - info Jelt - 27 Jul 2017
- . - . -

O O S T E R S C H E L D E H A L - Mp38
M 1000 - Oostershelde scale model - water sampling - 1973
M 1000 - Oostershelde scale model - water sampling - 1973
M 1000 - Oostershelde scale model - water samples taken by Dingeman Blokland and myself - 1973
M 1000 - Oostershelde scale model - water samples taken by Dingeman Blokland and myself - 1973
source image - Jaarverslag 1973 - via Abe Hoekstra - 01 Sep 2017

* * * 1974 * * *

M 1189-II - Dodewaard - Modelplaats 24 (Mp24)

D O D E W A A R D - Mp24
M 1189-II - Dodewaard - Test 7 - Tuesday 12 Mar 1974
M 1189-II - Dodewaard - Test 7 - Tuesday 12 Mar 1974
Move cursor over image for overlay

Authorized 17 Jan 1974 by PGEM - additional research - Month of March 1974 - Report II (Jun 1974)
ir. J. G. "Johan" Grijsen, "Grote" Klaas ten Napel
. . . . . . . . . . . . . . . . . . . . . . . . .
source: Report M 1189-II - via Library Deltares - 27 Jul 2017

Soccer team W.L.V. - 1974
Soccer team W.L.V. - 1974
l-r: Piet Rook, Jan van de Graaff, Anne Smid, Cor Hofland, Enne Hiemstra, Barend de Graaf, Jan Booij
Gerrit de Vos, Teun Schuurman, Frans Hulzebosch, Bert Janmaat en Hans Tukker
. . . . . . . . . . . . . . . . . . . . . . . . .
photo via Cor Hofland - 01 Aug 2017
- . - . -

E U R O P O O R T L O O D S - Mp16
ANDOC - M 1284 ANDOC - 07 July 1976 - Nieuwe Waterweg - towed to Norway - photo Aerophoto Nederland
M 1284 - ANDOC platform - Europoortloods (1974)            07 Jul 1976 - ANDOC platform in Nieuwe Waterweg
with ir. Ton L. van Heumen
ANDOC = ANglo-Dutch Offshore Concrete
07 - 16 Jul 1976 - Platform "DUNLIN A" (Shell) was towed from Maasvlakte, Rotterdam to Isle of Stord, Norway (570 Nm)
. . . . . . . . . . . . . . . . . . . . . . . . .
see also photo on page 44 - Verslag over het jaar 1974 - collection PATS
- . - . -

* * * 1969 - 1973 - 1974 - 1984 - 1985 * * *

Passed over the years for the B 171, B 172 and B 900 'internal' courses as given by PBNA-Arnhem by order of the Laboratorium
ing. Jaap Venema and ing. Jelle van der Werff were the coordinators at that time

B 171 - Arnhem, 9 Jul 1969
Algebra (7), Meetkunde (vrijstelling), Elektrotechniek (6), Werktuigkunde (6), Kennis van Werktuigen (7), Meten en Uitzetten (6), Sterkteleer (8), Hydraulica (6)

B 172 - Arnhem, 19 Dec 1973
Landmeten (6), Waterbouwkunde (7), Waterbouwkunde (8)

Plus Diploma - Arnhem, 04 Mar 1974 Plus

D I P L O M A
Clip - DIPLOMA - Waterloopkundig Laboratoriumassistent
W A T E R L O O P K U N D I G   L A B O R A T O R I U M A S S I S T E N T
. . . . . . . . . .

B 900 - Arnhem, 1974

W.0 - Utrecht, 1984
W.0 - Y73.34.510.258 - cursusnr 34.500.1 - Lesson 1 - 30 - AMBI module

I.1 - Utrecht, 1985
. . . . . . . . . .
PBNA, EXIN, NOVI - Learning centers
Last course was done in 1984/1985, further "specific" courses were followed to keep updated
When the PC with Internet/FTP came around the corner, AutoCAD/DTM/LISP/FORTRAN, etc ...
Autodidacticism was next in the hours after five o'clock or spare hours on the lab - info PATS

- . - . -

1965 - 1975 - Employees and those who did follow a course
1965 - 1975 - - - Employees and those who did follow a course
In a ten year period the Laboratory (Delft & De Voorst) did grown with 61% personnel
Around 30% did follow a course
. . . . . . . . . . . . . . . . . . . . . . . . .
source: Verslag over het jaar 1975 - page 11

1976 - 480 - 135 - 28.2%
1977 - 535 - 150 - 28.0%
1978 - 591 - 160 - 27.1%
- - - - - - - - - - - - - - - - - -
1968 - 1978 = 80% grown
source: Verslag over het jaar 1978 - page 11

- . - . -

* * * 1975 * * *

40 balloons

M 1361 - AMELISWEERD - - - - - - - basin in M 1000 - Mp38
M 1361 - Situation model - May 1975
HIJDRO DELFT - No. 42 - March 1976 - cover - HIJDRO DELFT - No. 42 - March 1976 - page 8 and 11
HIJDRO DELFT - No. 42 - March 1976 - cover - page 8 and 11
ir. Jan H. de Reus, Willem Santbergen, Henk Westhuis, Teun Schuurman, ?Koop? and Albert Loonstra (photographer)
Model number unknown, this is certainly prior to M 1328
No wave generators present at that time - info PATS


Beste Teunis,
Het modelnummer uit Hydro Delft nr. 42 is M 1361
Groeten, Lilian Rasidin - Library Deltares - 17 Jul 2017
- . - . -


May 1975 - M 1361 - Afzinken vlies in cunet bij Amelisweerd
client: R.W.S. Dir. Sluizen en Stuwen
ir. Jan H. de Reus
. . . . . . . . . . . . . . . . . . . . . . . . .
source: Report M 1361 (Sep 1975) - via Library Deltares - 17 Jul 2017
- . - . -

B O U - H A R O U N - A L G E R I A - Mp38

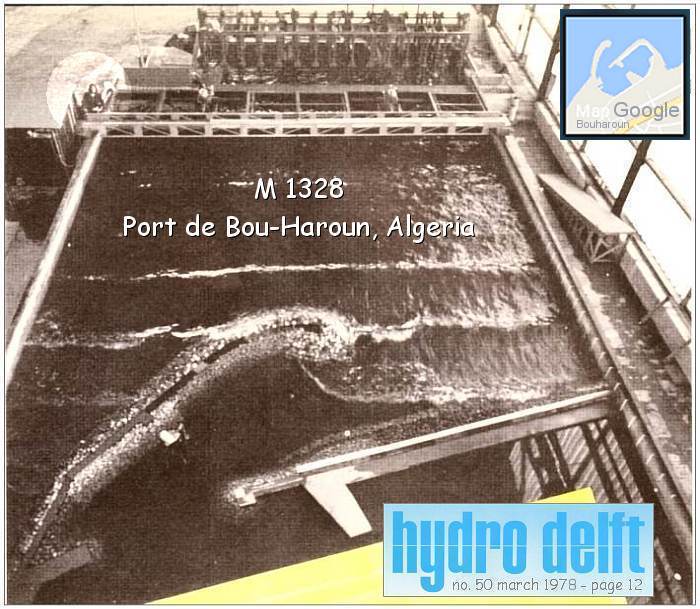

HIJDRO DELFT 50 - nov 1978 - page 12 - M 1328 - Port de Bou-Haroun, Algeria
Breakwater/harbour in "Deense golfbak" - M 1328 - Bou-Haroun -
It was prior to Peterhead Bay and I'm in the top-left "highlighted" circle near the "old" measurement cabin
Basin (25x11m - irregular waves - water depth 0.5m ) was build in 1974 under the roof of M 1000 building (25.280 m2 - 1969)
. . . . . . . . . . . . . . . . . . . . . . . . .
source: HIJDRO DELFT no. 50 - March 1978 - page 12
Found name "Bou-Haroun" in "Verslag over het jaar 1975" and Google Maps agreed ... BINGO ;) - 27 Jun 2017

M 1328 - cross-section C
M 1328 - cross-section C
M 1328 - Port de Bou-Haroun, Algeria
M 1328 - Port de Bou-Haroun, Algeria - model scale 1:30
Authorized 19 Dec 1974 - Report (Oct 1975)
ir. Jentje van der Weide and ir. Ton L. van Heumen
. . . . . . . . . . . . . . . . . . . . . . . . .
source: Report M 1328 (Oct 1975) - via Library Deltares - 05 Jul 2017
- . - . -

ing. Jan Bakker did start August 1975 at the laboratorium (same day as Johan Koopmans)

* * * 1976 * * *

Met ir. Jitse Wouters on 01 Sep 1976 - info Jitse Wouters - 21 Jun 2017

B R O U W E R S L O O D S - Mp36
M 1392-V - Peterhead Bay - Wave penetration
M 1392-V - Peterhead Bay - Wave penetration
M 1392-V - Peterhead Bay (Scotland) - Wave penetration - regular waves - different directions
ir. Jentje van der Weide, ir. Jan Karel Kostense, ir. Jitse Wouters and Willem Santbergen
Small scale model tests were carried out during the months September and October, 1976

source: Report M 1392-V - via Library Deltares - 18 Jul 2017
- . - . -

P E T E R H E A D   B A Y - S C O T L A N D - Mp38
HIJDRO DELFT 50 - nov 1978 - page 5 - Peterhead Bay Peterhead Bay - 2017 - (c) Google Maps
M 1392-I - Peterhead Bay (Scale model) . . . . . . . . . . . . . . . . . . Peterhead Bay (Scotland) - (c) Google
right image: HIJDRO DELFT - nov 1978 - page 5 - Peterhead Bay

M 1392-I - Wave overtopping over the South breakwater
M 1392-I - Wave overtopping over the South breakwater

M 1392-I - Peterhead Bay - L.P.G. mooring
M 1392-I - Peterhead Bay (Scotland) - L.P.G. mooring - in "Deense bak" a.k.a. "kleine" Scheldebak or Golfbak II
ir. Jan Karel Kostense and ing. Jan Bakker
Small scale model tests were carried out during the period February to May, 1976

Specifications Golfbak II (Oosterscheldehal) = 25 x 11 m (waterdepth 0.50 m - irregular waves - max. 0.25 m)

source: Report M 1392-I - via Library Deltares - 18 Jul 2017
- . - . -

S 288 - Research comparison with three different LPG's sizewise in "Deense bak" - Jitse Wouters and Willem Santbergen
info Jitse Wouters - 21 Jun 2017
- . - . -

* * * 1977 * * *

S I T U A T I O N - 01 Feb 1977
Terrain - Terrein Waterloopkundig Laboratorium - Modelplaatsen - situation 01 Feb 1977
Terrain - Terrein Waterloopkundig Laboratorium - Modelplaatsen - situation 01 Feb 1977
. . . . . . . . . . . . . . . . . . . . . . . . .
source: collection PATS
- . - . -

WL - 1927 - 1977 - 50y annniversary WL50 - First day of issue - 06 Sep 1977
WL - 1927 - 1977 - 50y annniversary . . . . . . . . . . . . . . . . First day of issue - 06 Sep 1977

WL50 stamp - First day of issue - 06 Sep 1977

- . - . -

* * * 1978 * * *

B A N G K O K L O O D S - Mp16
Khor Al-Zubair - Roelof and Joop with 'Tigris' manoevring
M 1602 - Khor Al-Zubair, Iraq - Harbour Study
ir. Henk Blaauw, Joop Ouderling and Roelof Hulleman
I took care of recording data, photos and film script
. . . . . . . . . . . . . . . . . . . . . . . . .
photo via Joop Ouderling - 28 Jun 2017
Contact Roelof Hulleman - 04 Jul 2017

Khor Al-Zubair - 'Tigris' manoevring
Khor Al-Zubair - 'Tigris' manoevring
M 1602 - Arriving manoevre during flood

M 1602 - Khor Al-Zubair - sketch film script - 11 - animation
M 1602 - Khor Al-Zubair - sketch film script by PATS
M 1602 - Khor Al-Zubair - sketch film script - 15 - passage
M 1602 - Khor Al-Zubair - Sketch film script by PATS
A final film was produced in cooperation with WL in-home photographer Toon Lankhorst (ODV)
. . . . . . . . . . . . . . . . . . . . . . . . .
source: Report M 1602 - via Library Deltares - 18 Jul 2017 - and collection PATS
- . - . -

* * * 1979 * * *

D E E N S E   G O L F B A K - a.k.a. "kleine" S C H E L D E B A K or Golfbak II - Mp38
M 1621 - Gioia Tauro, Italy - first half of 1979
M 1621 - Gioia Tauro, Italy - first half of 1979
M 1621 - Gioia Tauro, Italy - first half of 1979
ir. Klaas den Boer
Authorized: 20 Dec 1978 by Cassa per il Mezzogiorno (Fund for the South) - Studies were carried out first half of 1979
. . . . . . . . . . . . . . . . . . . . . . . . .
image collection PATS - 03 Aug 2017
source: Report M 1621 - via Library Deltares - 17 Aug 2017
- . - . -

F I R S T   R O U N D   T R I P   T O   N O R T H  A M E R I C A
10 May 1979 - Amsterdam - New York - AMS - JFK - with Trans International Airlines (TIA) - extended DC-8
26 Jun 1979 - Los Angeles - Bangor - Amsterdam - LAX - BGR - AMS - with Trans International (TIA) - DC-8-63

Trans International Airlines (IATA: LP / ICAO: TIA) was an airline based in Orlando, FL operating from 1960 to 1989
1979 - 7 weeks - New York to Los Angeles
1979 - 7 weeks - New York to Los Angeles - Northern route
Jan van der Linde, a Vollenhove resident, was looking for a travelling-companion to visit the U.S.A.
I knew Jan over the years from our flower float "Pomponius" and soccer clubs Fulnaho / VENO in Vollenhove
Told him: "It's okay for me, but I have no license" . . . . . It worked out well, thanks Jan
- . - . -

* * * 1979 - 1980 * * *

Studies with respect to wave penetration, ship motions, ship manoevring, breakwater design,
coastal morphology and siltation aspects, Dos Bocas Harbour ( Proyectos Marinos SA, Mexico, M 1632/3/4 )
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
source: Annual report 1980 - Delft Hydraulics Laboratory - page 27, 36 and 37
- . - . -

A BREAKWATER FOR MEXICO DO YOU TEST IN THE NOORDOOSTPOLDER
Dos Bocas - Mexico
M 1680 - Dos Bocas - Mexico - 1979 - 1980 -
l-r: Jaring Huitema (Instrumentation-ODV), Teun Schuurman and Hans Gast in background
Civil engineer Allen McLaren from Coquitlam, B.C., Canada was the supervisor - Head-assistant Leen Tulp
Pieter Pasterkamp, Hans Gast, Teun Schuurman, Willem Santbergen, Jan Dokter and Piet Rorije were also involved as assistant or labourer
. . . . . . . . . . . . . . . . . . . . . . . . .
source: Nieuwe Revu - image via Hans Gast - 19 Jun 2017
Hans Gast did start Sep 1976 at the laboratorium as assistant

I did visit Allen & Martha McLaren in Coquitlam, B.C. (May/June 1982)
and also got a glimpse of his lab in Coquitlam - info PATS

WESTERN CANADA HYDRAULIC LABORATORIES LTD
Spoke with Allen McLaren by phone - 19 Jun 2017

M 1680 - Dos Bocas - Breakwater head study
M 1680 - Dos Bocas - Breakwater head study - 1979 - 1980
. . . . . . . . . . . . . . . . . . . . . . . . .
photo by Allen McLaren, Creston, B.C. - 19 Jun 2017

M 1680 - Dos Bocas - Breakwater head study - overall view scale model
M 1680 - Dos Bocas - Breakwater head study - 1979 - 1980
. . . . . . . . . . . . . . . . . . . . . . . . .
photos by Allen McLaren, Creston, B.C. - 19 Jun 2017 - collage by PATS

Hi Teun, Glad they came through.
Here are a few more that I said I'd send tomorrow.
They were easier to find than I expected.
Dos Bocas model numbers were
- - - - - - - - - - - - - - - - - - - - - - - - - - -
M 1632 - wave penetration and navigation - in Brouwersloods
M 1633 - caisson forces and parapet - ? in Delft Laboratorium ?
M 1634 - breakwater armour in flume - in Scheldegoot (Test 12 was on 08 Jan 1980)
M 1680 - breakwater head stability - in Scheldebak
- - - - - - - - - - - - - - - - - - - - - - - - - - -

Cheers, Allen - 19 Jun 2017

D E E N S E   G O L F B A K - a.k.a. "kleine" S C H E L D E B A K or Golfbak II - Mp38
M 1680 - Breakwater testing model - Dos Bocas - photo by Allen Mclaren
M 1680 - Breakwater testing model - Dos Bocas - 1979 - 1980
. . . . . . . . . . . . . . . . . . . . . . . . .
photo by Allen McLaren, Creston, B.C. - 19 Jun 2017

B R O U W E R S L O O D S - Mp36
M 1632 - Wave penetration and navigation model - Dos Bocas - photo by Allen Mclaren
M 1632 - Wave penetration and navigation model - Dos Bocas - 1979 - 1980
l-r: Teun Schuurman (29), Jan Bakker (28) and Hans Gast (26)
. . . . . . . . . . . . . . . . . . . . . . . . .
photo by Allen McLaren, Creston, B.C. - 19 Jun 2017

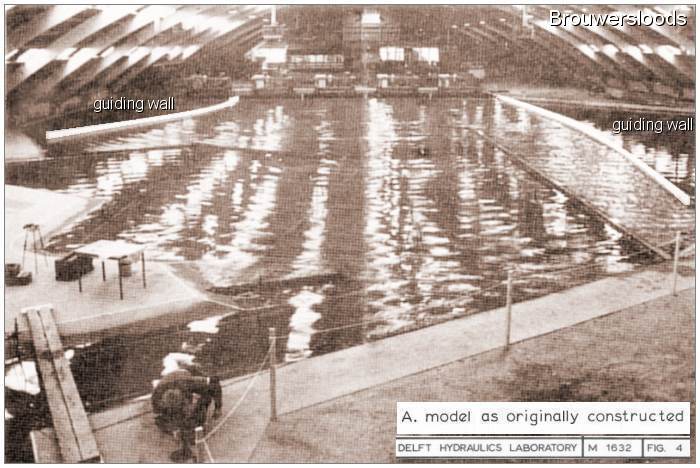

M 1632 - FIG 4 - A. model as originally constructed

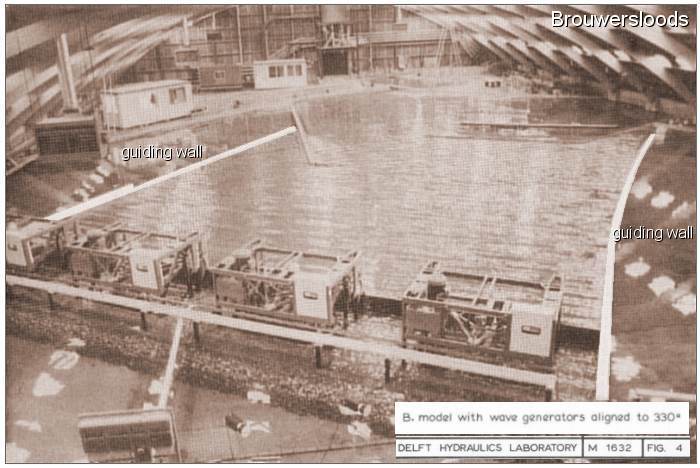

M 1632 - FIG 4 - B. model with wave generators alligned to 330°
M 1632 - Wave penetration model - Dos Bocas, Mexico
. . . . . . . . . . . . . . . . . . . . . . . . .
via Allen McLaren, Creston, B.C. - 19 Jun 2017
"pseudo" colors by PATS - 23 Jul 2017

M 1632 - Dos Bocas - Ship Hull testing
M 1632 - Dos Bocas - Ship Hull testing
photo by Allen McLaren, Creston, B.C. - 19 Jun 2017
ir. Jaap Strating and ir. Wim de Vries
The studies were conducted between May, 1979 and January, 1980
. . . . . . . . . . . . . . . . . . . . . . . . .
source: Report M 1632-5-2 - via Library Deltares - 18 Jul 2017
- . - . -

S E C O N D   R O U N D   T R I P   T O   N O R T H  A M E R I C A
19 May 1980 - KL641 - Amsterdam - New York - AMS - JFK - with KLM - B747-206 "The Danube"
20 Jun 1980 - KL602 - Los Angeles - Amsterdam - LAX - AMS - with KLM - B747
KLM Royal Dutch Airlines - Airline Founded - 07 Oct 1919 - It is the oldest airline in the world
1980 - 1 month - New York to Los Angeles
1980 - 1 month - New York to Los Angeles - Southern route
Again with travelling-companion Jan van der Linde from Vollenhove
This year I had my driver license, so I could give Jan a break on our 2nd trip from East to West
Ending up in the same motel on Manhattan Beach, only 5 mi from LAX Airport and 3 blks from the beach
Two years in a row we did visit in 11 weeks (79 days) lots of highlights and National Parks along our itineraries
- . - . -

* * * 1967 - 1978 * * *

WATERLOOPKUNDIG LABORATORIUM
"VERSLAG OVER HET JAAR"

Verslag 1967 - cover -       Verslag 1978 - cover -
1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978
. . . . . . . . . . . . . . . . . . . . . . . . .
collection PATS - 8 issues
missing 1971, 1973, 1976 and 1977 for this decade

* * * 1965 - 1975 * * *

HIJDRO DELFT - no. 1 - oct 1965 - cover - HIJDRO DELFT - no. 10 - jan 1968 - cover - HIJDRO DELFT - no. 20 - jul 1970 - cover - HIJDRO DELFT - no. 30-31 - may 1972 - cover - HIJDRO DELFT - no. 40 - sep 1975 - cover -
HIJDRO DELFT - 40 issues - number 1 (Oct'65) to number 40 (Sep'75)
. . . . . . . . . . . . . . . . . . . . . . . . .
collection PATS - 40 issues

* * * 1975 - 1985 - 1991 - 1993 - 1998 * * *

HIJDRO DELFT - no. 41 - nov 1975 - cover - HIJDRO DELFT - no. 50 - mar 1978 - cover - HIJDRO DELFT - no. 60 - jul 1981 - cover - HIJDRO DELFT - no. 70 - feb 1985 - cover - HIJDRO DELFT - no. 72 - nov 1985 - cover -      HYDRO DELFT - no. 79 - dec 1991 - cover -
HIJDRO DELFT - 32 issues - number 41 (Nov'75) to number 72 (Nov'85)
HYDRO DELFT - 4 issues - number 79 (Dec'91) to number 81 (Apr'93)
HYDRO DELFT - 1 issue - number 86 (Apr'98)
. . . . . . . . . . . . . . . . . . . . . . . . .
collection PATS - 37 issues

At the moment I do have 77 issues of HYDRO DELFT in my collection - 26 Jun 2017

* * * 1980 - 1983 * * *

annual-1980-dhl-cover- annual-1981-dhl-cover- annual-1982-dhl-cover- annual-1983-dhl-cover-
DELFT HYDRAULICS LABORATORY
ANNUAL REPORTS - 4 issues - 1980, 1981, 1982 and 1983
. . . . . . . . . . . . . . . . . . . . . . . . .
collection PATS - 4 issues

* * * 1984 - 1985 * * *

research-1984-dhl-cover- research-1985-dhl-cover-
DELFT HYDRAULICS LABORATORY
RESEARCH - 2 issues - 1984 and 1985
. . . . . . . . . . . . . . . . . . . . . . . . .
collection PATS - 2 issues

* * * 1976 - 1984 - 1985 - 1992 - 1993 - 1994 * * *

WL-INTERN - No. 32 cover - 8e jaargang - oct 1976       WL-INTERN - No. 58 cover - 16e jaargang - dec 1984 WL-INTERN - No. 59 cover - 17e jaargang - may 1984       WL-INTERN - No. 78 cover - 24e jaargang - may 1992
WL-INTERN - 5 issues - No. 32 - Okt 1976, - No. 58 - Dec 1984, No. 59 - May 1985, No. 78 - May 1992
Also No. 81 (Jan 1993), no. 82 (1993), 86, 87, 88 and 89 (1994)
issue No. 1 was in 1969
WL-intern: mededelingen voor medewerkers van het Waterloopkundig Laboratorium
. . . . . . . . . . . . . . . . . . . . . . . . .
collection PATS - 15 issues
No. 58, 59, 78, 81, 82, 86, 87 en 88 via Teun Schuurman - 19 Jun 2017
No. 32 via Hans Gast - 28 Jun 2017
No. 23, 29, 31, 32, 33 en 37 via Egbert Zeelte - 12 Jul 2017
No. 89 via Cor Hofland - 04 Aug 2017
- . - . -

* * * 1981 * * *

B A N G K O K L O O D S - Mp16
M 1667 - Abidjan
M 1667 - Abidjan, Côte d'Ivoire - Harbour extension in red
"roosterwerk" = Grating of wooden sticks to control the water distribution
. . . . . . . . . . . . . . . . . . . . . . . . .
original image source: waterloopbos.net - by Abe Hoekstra
extension and text added by PATS - 29 Jul 2017

M 1667 - FIG 14
M 1667 - Scale model layout - FIG. 14 - Harbour extension in red
colors and extension added to Fig. 14 by PATS - 29 Jul 2017

M 1667 - Abidjan, Côte d'Ivoire - Harbour extension
ir. Sander Boer
Authorized: 06 Feb 1981 by Ministère des Finances à Abidjan, Côte d'Ivoire - Report (Oct 1981)
Tests were done in the first half of 1981
. . . . . . . . . . . . . . . . . . . . . . . . .
source: Report M 1667 - via Library Deltares - 17 Jul 2017
- . - . -

April 1981 - O.T.C. Special report - by ir. Ep van Hijum
April 1981 - O.T.C. Special report - by ir. Ep van Hijum
Cartoon by PATS
- . - . -

FLOPPY 5¼ inch - drive A IBM PC - 1981 FLOPPY 5¼ inch - drive B
FLOPPY 5¼ inch - - - DRIVE A - - - - - - - - - - IBM PC - 1981 - - - - - - - - - - - DRIVE B - - FLOPPY 5¼ inch
image IBM PC - digibarn.com - Erik Klein - - - - - - image Floppy's by PATS

MS-DOS, or Microsoft Disk Operating System, the basic software for the newly released IBM PC
PC-DOS was also a OS on IBM PC
- . - . -

B R O U W E R S L O O D S - Mp36

M 1725 - Whitnell Bay, Australia
ir. Jaap Strating, Hans Gast, Roelof Hulleman
. . . . . . . . . . . . . . . . . . . . . . . . .
source: Report M 1725 - via Library Deltares - 17 Jul 2017
- . - . -

O O S T E R S C H E L D E L O O D S - Mp37
M 1783 - Pozzallo - Lay-out scale model
M 1783 - Pozzallo - Oosterscheldeloods - 1981 M 1783 - Pozzallo - Oosterscheldeloods - 1981
M 1783 - Harbour of Pozzallo, Italy
Feasibility study on wave penetration, mooring forces and ship motions
20 Feb 1981 (Authorized) - Aug 1981 (Report) - ir. Jitse Wouters and Willem Santbergen
. . . . . . . . . . . . . . . . . . . . . . . . .
source Deltares - photos - collection PATS

P O Z Z A L L O - comparison - scale model versus (c) Google 2017
Pozzallo 1981 - Model Pozzallo 1981 - Model - 2017 Google Pozzallo 2017 - Google
1981 - POZZALLO - 2017
As you can see the result is identical for the breakwater, connection to the Isle of Sicily is slightly different
(c) Google - 2017
- . - . -

W I N D G O O T - Mp39
M 1833 - 1.5 m Spleethoogte dorpel - top view scale model M 1833 - 1.5 m Spleethoogte dorpel - side view scale model
Top view - - - - - - - - - - M 1833 - 1.5 m Spleethoogte dorpel - - - - - - - - - - side-view
. . . . . . . . . . . . . . . . . . . . . . . . .
photos - collection PATS
- . - . -

W I N D G O O T - De Voorst - Sep, Oct, Nov 1981
LV 1459 - M 1833 - Onderzoek Stabiliteit bestorting t.o.v. spleethoogte dorpel - OOSTERSCHELDEPIJLERS
with ir. Jan Konter, Leen Tulp and Willem Santbergen
Week 38 - 47 - 1981 (10 weeks)
- . - . -

Did visit family Meijer in Cairo for 7 days
Assistant Harm Meijer was employed by WL in the Nile Delta for two years
It did give me the opportunity to see Cairo and the pyramids of Giza, incl. Sphinx

PATS - SPHINX - Oct 1981 PATS - SPHINX - Oct 1981
. . . . . . . . . . . . . . . . . . . . . . . .
See also UHL - Abu Dhabi - late 1997 / early 1998
- . - . -

* * * 1982 * * *

G L O B E T R O T T E R
PATS - Round the world in 90 days - 1982
"Round the world in 90 days"
Amsterdam-Bahrain-Kualu Lumpur-Penang-Medan-Djakarta-Denpasar
Djakarta-Singapore-HongKong-Honolulu-San Francisco-Los Angeles-Amsterdam
Flew with MAS, SIA, GARUDA and KLM

T H I R D   T I M E   I N   N O R T H  A M E R I C A
At the end . . . same motel at Manhattan Beach on Highland Ave . . . METRO bus for $1 to LAX in ~25 minutes
1982 - 90 days - Round the World - U.S.A. / CANADA
U.S.A. / CANADA overview - 1979 - 1980 - 1982
San Francisco, CA to Vancouver, BC - Greyhound overnight ride - 1603 km
Vancouver, BC to Redding, CA - Greyhound overnight ride - 1177 km
Redding, CA to Los Angeles, CA - Greyhound overnight ride - 1020 km

Out of San Francisco I took my first Greyhound bus towards Vancouver/Coquitlam to visit Allen & Martha McLaren
WESTERN CANADA HYDRAULIC LABORATORIES LTD, 1186 Pipeline Road, Port Coquitlam, B.C., Canada
Nowadays (2017) that location is rebuild and the laboratory seems out of business - info PATS

WESTERN CANADA HYDRAULIC LABORATORIES LTD
WESTERN CANADA HYDRAULIC LABORATORIES LTD - info folder - 1982
collection PATS

1982 - Windgoot - PATS
1982 - "meetcabine" Windgoot - PATS
collection PATS
- . - . -

* * * 1983 * * *

M 1768 - STORTSCHEMA DREMPELKERN TUSSEN PIJLERS - Steenstorter / Splijtbak
with ir. Jan Konter (Rijkswaterstaat / Deltadienst)
Main test was done at "Goot 4" in Delft, figures 1-31 for the final report were drawn by me
In the Voorst Laboratory we also did relevant tests in one of the flumes (? Tussenpadgoot ?)
. . . . . . . . . . . . . . . . . . . . . . . . .
August - September 1983 - rapport Week 37
- . - . -

* * * 1984 * * *

B R O U W E R S L O O D S - Mp36
M 1836.00
"EUROPOORT" and layout of hydraulic scale model with "meetraai" 4 - angle 75 degrees

275.000 TDW BULKCARRIER 'EUROPOORT'
275.000 TDW BULKCARRIER "EUROPOORT" - with Roelof Hulleman
source Deltares - image via Abe Hoekstra - 01 Sep 2017

M 1836.00 - Vertikale scheepsbewegingen in ondiep water
275.000 TDW BULKCARRIER "EUROPOORT"
ir. Jaap Strating and ir. Jos van Doorn - (report - Nov 1984)
. . . . . . . . . . . . . . . . . . . . . . . . .
source: Report M 1836 - via Library Deltares - 10 Aug 2017
- . - . -

* * * 1985 * * *

B R O U W E R S L O O D S - Mp36

M 1836.01 - Vertikale scheepsbewegingen in ondiep water
150.000 TDW BULK-CARRIER "RUPEL"
3e GENERATIE CONTAINER-SHIP "SCHEUR"
130.000 M3 LNG-CARRIER "FLEUR"
ir. Jaap Strating and ir. Jos van Doorn - (report - Jan 1985)
. . . . . . . . . . . . . . . . . . . . . . . . .
source: Report M 1836.01 - via Library Deltares - 10 Aug 2017
- . - . -

O F F I C E - Mp40
11 geslaagden - LV - Feb 1985
11 geslaagden - LV - Feb 1985
l-r: Tini de Jonge, Rob Timmerman, Peter Groenewoud, Sjoerd Oppewal, Dick Bout, Martje Loman, Jaring Huitema
Sjaak van Leeuwen, Hans Gast,
ir. Casper Veeningen, Harry Frijlink, ing. Jelle van der Werff, Teun Schuurman, Harm Meijer and Cor Hofland
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
source: WL-INTERN no. 59 May 1982 - page 22 - collection PATS
- . - . -

O O S T E R S C H E L D E L O O D S - Mp37
record sheet for wave tests under various conditions and layouts - 06 Jun 1985 LAEM CHABANG, Thailand - 2015 (c) Google
record sheet for wave tests under various conditions and layouts - 06 Jun 1985
Test #LC.018 - Layout B - Breakwater 700 m - - - - - 20 waveheight meters
Oosterscheldeloods (Zuid) - May, June, July 1985
M 2090.08 - LAEM CHABANG, Thailand - with ir. Jos van Doorn

Google Earth image shows Laem Chabang harbour 30 years later in 2015
- . - . -

* * * 1986 * * *

B R O U W E R S L O O D S - Mp36

M 1837.00 - Vertikale scheepsbewegingen in ondiep water
275.000 TDW BULKCARRIER "EUROPOORT"
500.000 TDW TANKER "PORT OF ROTTERDAM"
ir. Jaap Strating and ir. Jos van Doorn - (report - Mar 1986)
Joop Ouderling, Hans Gast, Roelof Hulleman and myself were on M 1836/1837 over the years
. . . . . . . . . . . . . . . . . . . . . . . . .
source: Report M 1837.00 - via Library Deltares - 10 Aug 2017
- . - . -

B R O U W E R S L O O D S - Mp36

M 1837.02 - Vertikale scheepsbewegingen in ondiep water
275.000 TDW BULKCARRIER "EUROPOORT"
ir. Jos van Doorn - (report - May 1986)
. . . . . . . . . . . . . . . . . . . . . . . . .
source: Report M 1837.02 - via Library Deltares - 10 Aug 2017
- . - . -

Q 426.10 - Gebruik van de op het WL ontwikkelde scheepvaartsimulatoren - Juli 1986
ir. Wim de Vries, Richard Gatersleben en Jos Hendriksen

Configuration: HP A-900, VAX 11/750 and Megatek Merlin 9200 (CAD terminal)

3.6 Modelleren van scheepvaartinfrastrukturen
Rinus Witteveen en Teun Schuurman zijn de specialisten op het gebied van modelleren.
Zij kunnen eventueel anderen inwerken. ( pag. 8 )

S I M U L A T O R   I N   B U N G A L O W   G O L F B A K - Mp 34
Hartelkanaal - 4-baks duwstel - simulator run by night - WL
Hartelkanaal - "4-baks duwstel" passing bridge - simulator run by night - WL
Inland Vessel Simulator - Outside 3D-view by Rinus and Teun
. . . . . . . . . . . . . . . . . . . . . . . . .
collection PATS
- . - . -

* * * 1987 * * *

$88 - Greyhound - Montreal, QC to Victoria, BC

F O U R T H   T I M E   I N   N O R T H  A M E R I C A
Greyhound ticket for $88 was a real STEAL . . . BINGO !!!
1987 - 11 weeks - across Canada to Vancouver Island
11 weeks - across Canada to Vancouver Island - overview - 1979 - 1980 - 1982 - 1987
Stops in Montreal (Gaylene), Mattawa (Motel), Blind River (M), Sault Ste. Marie (M), Nipigon (M),
Dryden (M), Revelstoke (M), Coquitlam/Vancouver (Allen & Martha) and Mill Bay (Marguerite)


Was for 9 weeks in Mill Bay at Marg's boarding house - one minute from ocean and Mill Bay Shopping Centre
Just the perfect spot, as I noticed this already in 1982 when I was there for 8 days ($5 per day instead of the average $25)
Did start (5 days) in Montreal were Marguerite's daughter Gaylene Wellman was living and working as waitress
In Sault Ste. Marie I ran into Scott Hurst and Dan Treichel from Green Bay, WI while on the Agawa Canyon Tour by train
Dryden, ON to Revelstoke, BC was done in one overnight bus ride (my longest Greyhound ride in hrs for this 2109 km)
In Coquitlam again with Allen & Martha McLaren for a short break
Maverick Coach Lines (or PCL) to Nanaimo on-board of BC-Ferries; towards Mill Bay I used my thumb for the last 70 km ;)
In those days there was less scheduled bus services on the Island as it is nowadays
I'm still in touch with Marguerite (b.1928), Gaylene Wellman and Scott Hurst - info PATS - 16 Aug 2017

- . - . -

H 669 - PUERTO DE SANTA CRUZ DE TENERIFE
October 1987 - Ship manoevring Simulator Study, ir. Ton Burgers, ir. Freek Verkerk and Peter Kluytenaar (Trainer)
- . - . -

* * * 1988 * * *

HAKO - SEGMENT SCHEEPSHYDRODYNAMIKA - HARBOURS GROUP
ASSISTENT WISKUNDIGE MODELLEN / AANKOMEND PROGRAMMEUR
I.1 - W.0 - T.4 - W.1 - HP1000 - INFORMATIKA EN NUMERIEKE WISKUNDE

SHIPMA Version 4.21 - Sept 1988
SHIPMA Version 4.21 - Sept 1988

M.S. WINDOWS 2.03
- . - . -

L E A V E   C A R D - V E R L O F K A A R T - P A T S - 1 9 8 8
Saldo 1-1-1988 - 108 days
Saldo 1-1-1988 - 108 days (~21 weeks) - - - - - - - Saldo 1-1-1989 - 90.5 days (~18 weeks)
Above shedule gives you an idea how free days were build-up (38.5 days for 1988) and 62.5 used ( Saldo 31-12-1988 = 45.5 )
Summer Holiday - 11 weeks - 26 May 1988 till 16 Aug 1988

I had my "own" chart in AutoCAD - the HAKO logo was an unofficial design from my side ;)
Saldo 1-1-1987 - maximum days I ever banked was 151 (~30 weeks) - 139 plus 12 A.D.V. days
reason . . . from 1983 to 1986 not on holiday, overtime and less days off

Lucky that the LABORATORY had this opportunity with flexible rules ;) . . . . . . . till 1994 I could eat this "cake" of days

My friends in the USA were always wondering "Do you have a job ?"
told them with a BIG smile :-)
SMILE
"Everything is according the rules of my employer"
- . - . -

F I F T H   T I M E   I N   N O R T H  A M E R I C A
1988 - 11 weeks - across North-America to Vancouver Island
11 weeks - across North-America to Vancouver Island - overview - 1979 - 1980 - 1982 - 1987 - 1988
Stops in Boston (Motel), Montreal (M), Mattawa (M), Blind River (M),
Amberg (Scott Hurst), Green Bay (Scott Hurst), Duluth (M)
Medicine Hat (M), Red Cliff (Jopie & Ted Kolmetz), Revelstoke (M) and Mill Bay (Marguerite)

. . . . . . . . . . . . . . . . . . . . . . . . .
Salmon Arm (Bill & Anita Murray née Wellman), Calgary (Gaylene Wellman)

Left Schiphol (AMS) on 29 May 1988 with Martinair to Boston Logan Airport (BOS)
Out of Boston I went by bus to Montreal to catch the Greyhound, I was forced due a strike to take the train to Mattawa
I hitch a ride of 186 km to Sudbury from where the bus schedule was running without problems
In Amberg, WI I met the townfolks while staying at Scott's cabin on the Pike River
Debbie, Mark, Wendy, Jack, Norma, Gordy, Dan, etc ... became long-time friends in that area
A couple of days later I took the bus out of Green Bay, WI to Duluth, MN while seeing rural Wisconsin
Overnight Greyhound bus ride of 1662 km - Duluth, MN to Medicine Hat, AB via Grand Forks, ND and Winnipeg, MB
Willem and Klaasje Santbergen from Vollenhove did visit their relatives in Medicine Hat, AB
Willem Santbergen was my colleague for several years on the Laboratory
Small world ;)
From 14 Jun 1988 till 25 Aug 1988 at Marg's place in Mill Bay, BC - Bas Kooijenga from Middelie was there too.
Drove together with Marg to Calgary in a small truck to supply daughter Gaylene with some furniture
we did stop twice in Salmon Arm / Enderby at Bill & Anita Murray née Wellman (Marg's older sister - b.1923)
. . . . . . . . . . . . . . . . . . . . . . . . .
Anita and Marguerite are still with us. Gaylene lives in Crofton, BC on Vancouver Island
while Bas is farming in Martensville, SK. I'm still in touch with them - info PATS - 17 Aug 2017

- . - . -

H 854 - PUERTO DE SANTA CRUZ DE TENERIFE
September 1988 - Simulator Study, ir. Ton Burgers, ir. Freek Verkerk and Peter Kluytenaar (Trainer)
- . - . -

* * * 1989 * * *

Summer vacation - 6 weeks - all flights with Northwest Airlines (NW)
. . . . . . . . . . . . . . . . . . . . . . . . .
AMS - BOS - DTW - MKE (with NW)
With bus to Green Bay - by car to Amberg - by car to MKE
MKE - MSP - SEA (with NW)
With ferry to Victoria - hitchhiking to Mill Bay - ferry to SEA
SEA - DTW - BOS - AMS (with NW)
. . . . . . . . . . . . . . . . . . . . . . . . .
- . - . -

H 138-20 - SHIPMA - PARADIP, India
- . - . -

H 625-00 - SHIPMA - EUROGEUL - "Selected Route"
- . - . -

H 645-07 - SHIPMA - ENORE, India
- . - . -

H 836-20 - SHIPMA - CASTELLABATE, Italy
- . - . -

H 864-20 - SHIPMA - ????????
- . - . -

H 1046-10 - SHIPMA - TERNEUZEN - 26 Sep 1989
- . - . -

H 734 - SHIPMA - BERMUDA - 11 Oct 1989
- . - . -

CORELDRAW 1.01

* * * 1990 * * *

Q 1311 - SUSAN
- . - . -

Q 780-00 - ???????
- . - . -

Q 880-05 - ???????
- . - . -

Q 1018-95 - ???????
- . - . -

H 646-10 - COCHIN, India
- . - . -

H 1231 - Port of BILBAO, Spain - April 1990
- . - . -

Erasmusbrug - doorvaart
Q 1204 - Erasmusbrug, Rotterdam - November 1990 - Johan de Jong
- . - . -

H 1315 - Port of HUELVA, Spain - Nov 1990
H 1315 - Huelva - AutoCAD - Basic layout
H 1315 - Huelva - AutoCAD - Basic layout
This drawing (bottom left) was "our" base - drawn by PATS
In general all harbour layouts did start with a initial drawing in UTM format
Conversions were made from LatLong or local grids if needed
Over the years I had several programs or AutoCAD routines to get the job done
Now 27 years later I did add some colors to this bw plot with a few clicks - info PATS
. . . . . . . . . . . . . . . . . . . . . . . . .
source H 1315 - WL|Delft Hydraulics - collection PATS
- . - . -

H 734-30 - SHIPMA - BERMUDA - 30 Nov 1990

Bermuda - Simulator run - 'HORIZON' 208 x 29 x 7.31 m
Bermuda - Simulator run - 'HORIZON' 208 x 29 x 7.31 m
Bermuda - Simulator run - "HORIZON" 208 x 29 x 7.31 m
. . . . . . . . . . . . . . . . . . . . . . . . .
source H 734-30 - WL|Delft Hydraulics - collection PATS

I was one day with ir. Freek Verkerk and Peter Kluytenaar on the "Horizon" for trial manoeuvring and turning circle, etc ...
We left Emden (D) to a small test area on the North Sea near the Isle of Borkum
Buoys were placed identical as in Bermuda, so looking to the radar it was "Bermuda" for one day ;)
There was one passage with myself at the helm

'HORIZON' 208 x 29 x 7.31 m
MV HORIZON - Celibrity Cruises
original image - MEYER WERFT, Papenburg (D) - 1990

The Horizon and the Zenith were the first ships of a fleet of floating grand hotels for the cruise brand Celebrity Cruises.
In the early 90’s, the Horizon (1990) as well as the Zenith (1992) were the biggest passengers ships ever built in Germany.
Passengers: 1660

MV HORIZON (cruise ship) - https://en.wikipedia.org/wiki/MV_Horizon
- . - . -

FLOPPY 5¼ inch - 360Kb / 720 Kb -
FLOPPY 5¼ inch FLOPPY 5¼ inch
3½-inch Floppy disks - 720Kb - 1.44Mb - 2.0Mb capacity
3½-inch Floppy disks - 720Kb - 1.44Mb - 2.0Mb capacity
Hard to believe that this was the capacity, comparing with nowadays standards
Still can read this 3½-inch format on my W2K system ;) and it comes in quite handy to fill in my timeline for that era
Momentarily I'll back-up and empty all 3½-inch disks ... ending up in the trash for ever
keep a few as recollection and some 5¼ inch too

. . . . . . . . . . . . . . . . . . . . . . . . .
floppy images by PATS

Floppy disks, initially as 8-inch (200 mm) media and later in 5¼-inch (133 mm) and 3½-inch (90 mm) sizes,
were a ubiquitous form of data storage and exchange from the mid-1970s into the mid-2000s.
By the late 2000s, computers were rarely manufactured with installed floppy disk drives;
3½-inch floppy disks can be used with an external USB floppy disk drive,
but USB drives for 5¼-inch, 8-inch, and non-standard diskettes are rare to non-existent.
These formats are usually handled by older equipment.

. . . . . . . . . . . . . . . . . . . . . . . . .
source wikipedia

* * * 1991 * * *

SHIPMA Version 4.30 - Apr 1991
SHIPMA Version 4.30 - Apr 1991

Q 1372 - Weurt - Jun 1991 - ir. Alewijn Boogaard
Inland Vessel Simulator
- . - . -

LAYOUT IN AUTOCAD AS BASE FOR 3D-VIEW, SHIPMA, RELATED PROGRAMS AND FINAL REPORT
Q-1362 - Houtribsluizen - AutoCAD - base
Q-1362 - Houtribsluizen - Sep 1991
Q 1362 - Houtribsluizen - Sep 1991
Inland vessel simulator / Binnenvaartsimulator - ir. Johan de Jong
In AutoCAD R10 (AC1006) the contour was digitized in RD-grid and used for radar image, contour plot and building the 3D-view
These screendumps (640x480) from AutoCAD were colourized in 1991 with Deluxe Paint II and PC Paintbrush IV Plus
Both programs were part of my private collection
. . . . . . . . . . . . . . . . . . . . . . . . .
Inset (c) Google 2017
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
source Q 1362 - WL|Delft Hydraulics - collection PATS
- . - . -

* * * 1992 * * *

H 1208-30 - SHIPMA - TUGCON - BARROW-IN-FURNESS - 21 Jan 1992
- . - . -

HMS Vanguard (S28)
- - - - - - - - - -
The eleventh HMS Vanguard of the Royal Navy is the lead boat of her class of Trident ballistic missile-armed submarines.
The submarine is based at Faslane, HMNB Clyde, Argyll, Scotland.

Vanguard was built at Barrow-in-Furness by Vickers Shipbuilding and Engineering Ltd (now BAE Systems Submarine Solutions),
was launched on 4 March 1992, and commissioned on 14 August 1993.
. . . . . . . . . . . . . . . . . . . . . . . . .
info: en.wikipedia.org/wiki/HMS_Vanguard_(S28)

B A R R O W - I N - F U R N E S S
Barrow-in-Furness - Outbound - Ramden Dock - 1992
Barrow-in-Furness - Tug positions - Outbound - Ramden Dock Barrow-in-Furness - Tug positions - Inbound - Ramden Dock
H-1208.30 - Barrow-in-Furness - Walney/Piel Channel Barrow-in-Furness - Irish Sea - Google Maps
Barrow-in-Furness - Walney/Piel Channel, U.K.                         Irish Sea - Barrow-in-Furness

CAREFUL   A227
CAREFUL A227 - by Barry Dixon

When it left Ramsden dock on her maiden trip by high tide, ir. Jan Onassis and myself were for about 6 miles on tug no. 1 (CAREFUL A227)
After 30 minutes the "sub" sailed by herself with 10 knots in the last section ( final buoy "Lightning Knoll" at 13870 m ) towards Argyll, Scotland
A total of four tugs were in use to keep the "cigar" on track in the narrow Walney/Piel Channel
Crew: 135 - Propulsion: 1 x Rolls-Royce PWR2 nuclear reactor, 2 x GEC turbines
Length: 149.9m - Beam: 12.8m - Height: 12m

. . . . . . . . . . . . . . . . . . . . . . . . .
Royal Maritime Auxiliary Service (RMAS) - Adept-class tractor tugs
Tug no. 1 (CAREFUL A227) - 40.00 x 10.00 x 4.20 m - crew: 10 - speed: 12.50 kn
Tug no. 2 (DEXTEROUS A231) - 40.00 x 10.00 x 4.20 m - crew: 10 - speed: 12.50 kn
Tug no. 3 (....... A22?)
Tug no. 4 (....... A22?)
- . - . -

* * * 1988 - 1994 * * *

!!! not in order !!! under construction !!!
Wind-Stroomgoot, Tussenpadgootje, M-1000 building (with 4 locations), Brouwersloods (4 locations), Bangkokloods (3 locations ) (Mp16),
Bangkokbungalow (Bouwbureau), Deense golfbak (with Willem Santbergen), IJkgootjes (2), Jo-Vinjé Golfbak, Golfbakbungalow (Scheepssimulator), Pentagoot (Mp29)
Borssele (with Bennie Beld) (Mp33), Doodewaard (Mp24), Rak van Scheelhoek (with Derk Apperlo) (Mp23), Lagos (Mp5), ???? (Mp1), Main-office and Tekenkamer
!!! not in order !!! under construction !!!

Mp1, Mp5, Mp6, Mp16, Mp18, Mp21, Mp23, Mp24, Mp29, Mp33, and Mp34 are 100% locations for myself
Terrain - Terrein Waterloopkundig Laboratorium - Modelplaatsen - situation 01 Dec 1975
Terrain - Terrein Waterloopkundig Laboratorium - Modelplaatsen - situation 01 Dec 1975
. . . . . . . . . . . . . . . . . . . . . . . . .
source: waterloopbos.net by Abe Hoekstra - nrs. 1 to 35 -
Move cursor over image to see my (Teunis "PATS" Schuurman) locations at the laboratorium from 1967 to present

M-1000, Brouwersloods, Oosterscheldeloods, Main Office (Voorsterweg 28) and Wind-Stroomgoot are not numbered or displayed yet,
- - - - - - - - - - - - - - - - - - - - - - - - - - -
Mp36 - Brouwersloods - Noord - M 1632 - Dos Bocas (Mexico) (1979-1980) (Allen McLaren M.Sc.Eng.)
M 1725 - Whitnell Bay (Australia) (ir. Jaap Strating)
M 1836/1837 - Eurogeul (ir. Jaap Strating and ir. Jos van Doorn)

Mp37 - Oosterscheldeloods - Zuid - M 1061 - Manfredonia (Italy) (1969) (ir. Ad Wevers)
M 1783 - Pozzallo (Italy) (1981) (ir. Jitse Wouters)

Mp38 - Loods M-1000-M1001 - M 1680 - Dos Bocas (Mexico) (1979-1980) (Allen McLaren M.Sc.Eng.)
M 1392 - Peterhead Bay (Scotland) (ir. Jan Karel Kostense)
M 1271-V - Beaufort Sea (Canada) (ir. Ep van Hijum)
M 1621 - Gioia Tauro (Italy) (ir. Klaas den Boer)
M 1829 - Gioia Tauro (Italy) (ir. Klaas den Boer and ir. Jentsje Wouter van der Meer)

Mp39 - Wind-Stroomgoot - M ???? - Pijpleiding (ir. Kees Hulsbergen and ir. Romke Bijker)

Mp40 - Main-Office at Voorsterweg 28 - 05 Sep 1979 - opening new office
- - - - - - - - - - - - - - - - - - - - - - - - -
but I was also in these locations Nrs. 36 to 40 - info PATS - 23 Jun 2017

- . - . -

Mp29 is also in my records with M 675A and later the Pentagoot in the same location with M ????

click here for detailed scale model location and photos: MODELPLAATSEN (opens in new window) - maintained by Abe Hoekstra

!!! under construction !!! - info PATS - 14/Dec/2017
- . - . -

* * * 1983 - 1996 * * *

A R T I S T   I M P R E S S I O N
Shipma rum with wave setup - Port of Gijón
Shipma run with wave setup - Port of Gijón, Spain
Raytrace with Vivid by PATS
Shipma run and wave setup plots are visualized in one image, using AutoCAD, DXF2V20 and VIVID 2.0
Part of this image was also used on the cover of harbours magazine - delft hydraulics (1995)
- . - . -

* * * 1991 - 1992 - 1993 * * *

MSCN - Wageningen
MSCN - Wageningen
Maritime Simulation Centre the Netherlands B.V.
Opening MSCN - 15 Apr 1992
. . . . . . . . . . . . . . . . . . . . . . . . .

SKYLINE - EXAMPLE 3
SKYLINE - EXAMPLE 3
The 3D technique used in 1991 was to color the polygon meshes, later an image or texture was projected on a polygon
what did make look the scenery way more realistic
. . . . . . . . . . . . . . . . . . . . . . . . .
Compare Flight Simulator 4.0 with later versions and you get the point ;) - info PATS

MSCN - bridge
Design and support 3D-view for several projects
Former colleagues of WL at MSCN are Arend Abbing, Henk Blaauw, Ernst Bolt, Jos van Doorn, Johan de Jong,
Frank Kuipers, Harrie Laboyrie, Ben Pieffers and Freek Verkerk
- . - . -

WL logo - DGM3 - Digital Ground Modelling
WL logo - - - - - - - - - - - - - - DGM3 - Digital Ground Modelling
WL logo was done with VIVID, other screendumps are from DGM3
DGM3.8 was stand-alone digital terrain modeling software in use by HAKO (Jan Wieten & Romke Bijker)
- . - . -

* * * 1994 * * *

H 1672 - BINTULU HARBOUR DEVELOPMENT - MASTERPLAN
Bintulu, Malaysia
27 Jan 1994 - ir. Jan Onassis
- . - . -

19 - 22 Apr 1994: GWN-DTM course in Edmonton, Canada
GWN-DTM - Digital Terrain Modelling and Contour Mapping program inside AutoCAD
Great White North
- . - . -

Another DTM package, QUICKSURF, was finally obtained by Delft Hydraulics
Also running inside AutoCAD

QuickSurf - TIN model - Waterford, Ireland
QuickSurf - TIN model - Waterford, Ireland
Screendump AutoCAD - 640x480
- . - . -

* * * 1995 * * *

H 2330 - MSCN - Schelde, Zandvliet, Sloe, Enore
- . - . -

* * * 1996 * * *

H 2214-01 - MARINE TERMINAL JAMNAGAR REFINERY
Gulf of Kutch, India
15 - 28 Feb 1996 - ir. Gijs van Banning
- . - . -

30 SEPTEMBER 1996 - RESIGNED FROM WL|DELFT HYDRAULICS

"IK HOU DE EER AAN MIJZELF" ;)

sometimes it's better to take the high road ;)
Did stay at the same spot in the main-office (fl. 200 per month)
2017 - I'm still in this office ;) - meanwhile landlord #7

Above for the WL period 1967 - 1996 I tried to mention as much WL projects in which I was involved,
realizing that I still missed several M, H, Q, R, S and W numbers
The long-term projects are there for sure - info PATS ;)

- . - . -

* * * 1997 * * *

PATS GRAPHICS DESIGN PATS GRAPHICS DESIGN PATS GRAPHICS DESIGN

@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @

- PATS GRAPHICS DESIGN -
Voorsterweg 28-P2 - 8316PT Marknesse - tel. +31-527-242316 -

- founded April 1997 as Freelancer / ZZP'er -
PATS it's a shortening for "Per Adres Teun Schuurman".
Since 1975 everyone knows me better under the name "PATS" than Teun.
- . - . -


A B U   D H A B I - U N I T E D   A R A B   E M I R A T E S
Abu Dhabi - aerial - 1997 - 1998
Abu Dhabi - aerial - 1997 - 1998
The harbour area and bathymetry had to be modified in the hydraulic scale model at UHL
. . . . . . . . . . . . . . . . . . . . . . . . .
photo - collection PATS

1 month - Oct 1997 - Nov 1997 - Abu Dhabi - Umm al Nar Hydraulic Laboratory - WED
ir. Rashid Thabet, ing. Henk Derks, Harm Meijer and ing. Jan Ardon
. . . . . . . . . . . . . . . . . . . . . . . . .
by order of WL|Delft Hydraulics

A022 - MAASVLAKTE II, Q 2247 - BARRANQUILA, Q 2303 - HULHUIZEN, A100 - HYDRODYNAMIC MODELS
H 3145.10, A185 - AIN AL-SOKNA, Z498.40 - UMM AL NAR
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1 - 11 - Support for various projects by order of ALKYON and WL|DELFT HYDRAULICS - 1997
- . - . -

* * * 1998 * * *

Teunis Schuurman - PATS - 1998 - Abu Dhabi
Teunis Schuurman - PATS - 1998 - Abu Dhabi
Teunis Schuurman - Holland

Umm al Nar Hydraulic Laboratory - images via Jan Ardon
Umm al Nar Hydraulic Laboratory - image via WL|Delft Hydraulics
Umm al Nar Hydraulic Laboratory - Abu Dhabi tidal scale model
Al Taweelah model was on the left (see orange concrete) in the same hall
source UHL - WL|Delft Hydraulics - Jan Ardon - 1997 - 1998

3 months - Jan 1998 - Apr 1998 - Abu Dhabi - Umm al Nar Hydraulic Laboratory - WED
ir. Rashid Thabet, ing. Henk Derks, Harm Meijer and ing. Jan Ardon
. . . . . . . . . . . . . . . . . . . . . . . . .
by order of WL|Delft Hydraulics

Z 498.40 - UMM AL NAR, A201 - MARACAIBO, WHITE NILE
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12 - 14 - Support for various projects by order of WL|DELFT HYDRAULICS and ALKYON - 1998
- . - . -

* * * 1999 * * *

A201 - MARACAIBO, A407, A337 - MAASVLAKTE, A460 - OOSTERSCHELDE, H 841 - AMELAND/JARKUS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15 - 22 - Support for various projects by order of ALKYON and WL|DELFT HYDRAULICS - 1999
- . - . -

* * * 2000 * * *

A527 - IJMUIDEN-ZEESLUIZEN, SUPPORT AUTOCAD PLOTS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23 - 24 - Support for various projects by order of ALKYON and ROYAL HUISMAN SHIPYARD - 2000
- . - . -

Nov 2000 - Former WL main-office is now renamed
GBP - Geomatics Business Park - since Nov 2000
Geomatics Business Park - GBP - Voorsterweg 28

Discover the endless possibilities GBP offers companies in the realm of geomatics.
Active in the same industry in this well-equipped building.
Geomatics Business Park is a discovery for an increasing amount of companies
that want to grow in this new and attractive market

ALBATROS, ARCADIS - ALKYON , GEOSERVE, BMT ARGOSS, PATS
INFRAM, IDP, BZIM, DELTARES, NLR, SYNOPTICS, H2iD,
ECOFLIGHT, WATER INSIGHT, ARGEOPS, HERMESS, JUBLY,
COMPOWORLD, SAC - HOKOFARM GROUP B.V., CORELLIAN, etc ....
. . . . . . . . . . . . . . . . . . . . . . . . .
Since 14 Oct 2016 - GBP renamed to DYNTES Tech Park
Those in RED are not more in this building or at this address - info PATS - 10 Jul 2017

Vrijdag 14 oktober 2016 is het voormalige Geomatics Business Park omgedoopt in DYNTES Tech Park
Hoog innovatieve ontwikkelingen van het Waterbouwkundig Laboratorium en van het Geomatics Business Park hebben in het verleden,
steeds een grote rol gespeeld bij de versteviging van de (inter)nationale marktpositie van de regio en gezorgd voor veel werkgelegenheid.
. . . . . . . . . . . . . . . . . . . . . . . . .
info: dyntes-techpark.nl/actueel/
- . - . -

* * * 2001 * * *

P E R S I A N   G U L F
Persian Gulf
Persian Gulf - digitized contours and points - by order of ALKYON - 2001
All supplied data verified, transformed and optimized for further use in right format
- . - . -

Design CDROM - back
D-Synergie cover - inzending
D-Synergie cover with animation clips - July 2001
ir. Rob Steijn (ALKYON) and ir. Kees Hulsbergen (H2iD)
- . - . -

A746 - DAR ES SALAAM, A666 - MARACAIBO, A681, ANIMATION PROJECT, A705 - LAUWERSMEER
A142 - SEA CONTOURS, A782 - JEDDAH, I221 - MARKERMEER, ARUBA, A663, K2005*VOORDELTA
PERCEELGRENZEN-FRIESLAND, A860 - SAHKALIN, A833 - EILANDBRUG-KAMPEN, A852 - SPECTRA's
A825 - OKHA - LNG TERMINAL, ANIMATION-GREVELINGEN, A601, W053 - ARABIC GULF, A873, A847, I454
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
25 - 53 - Support for various projects by order of ALKYON, ARGOSS, INFRAM, H2iD, RIKZ, SYNOPTICS and BUREAU WAARDENBURG - 2001
- . - . -

* * * 2002 * * *

O K H A - I N D I A
LPG Terminal Okha
LPG Terminal Okha - AutoCAD - Drawing A0 Format
by order of ALKYON - 2002
- . - . -

Cross-county biker braves Saint Clair-Frackville grade
On his way to Frackville and beyond - 24 Jun 2002
On his way to Frackville and beyond - 24 Jun 2002, Frackville, PA, U.S.A.
photo by Frank Andruscavage - 24 Jun 2002 - - - see Frank's article
Shirt design "VAN OOSTEN" by PATS

Cross-country in 51 legs - CANADA/USA - 5881 km - 3654 mi
Cross-country in 51 legs - CANADA/USA - 5881 km - 3654 mi
Average 115.313 km per day (71.647 mi per day)

Longest leg Cross-country - 274 km
Longest leg was Foam Lake, SK, Canada - Martensville, SK - 274 km - 26.14 km/h - 10:29 hrs
Shortest leg was Whitemouth, MB, Canada - Beausejour, MB - 50 km - 20.96 km/h - 2:23 hrs
In total approx. 10.000 km (6,214 miles) on the bicycle in Canada and U.S.A.
In Mill Bay, Vancouver Island, I did rent twice a 10-speed. Other six times it was my own bike ;)
Longest distance I ever did in one day, on my race-bike in 2002, was 285 km (27.88 km/h)
- . - . -

A C C U M E R   E E   -   G E R M A N Y
Europipe - Accumer Ee - 1994 - 2002 by ACRB
Europipe - Accumer Ee - 1994 - 2002
AutoCAD / QuickSurf / VIVID rendering / POVRAY rendering / Paint Shop Pro
. . . . . . . . . . . . . . . . . . . . . . . . .
by order of Advanced Consultancy Romke Bijker (ACRB) - ir. Romke Bijker
- . - . -

M O L E N G A T - T H E   N ET H E R L A N D S
Molengat - 1997 Molengat - 1997 - 2000
Animation promo made to show 3D capability - Molengat - 1997 - 2000
AutoCAD / QuickSurf / POVRAY rendering / Paint Shop Pro animation
. . . . . . . . . . . . . . . . . . . . . . . . .
Dutch coastal bathymetry data via ir. Rob Steijn - ALKYON
- . - . -

EUROPIPE, A825 - OKHA, A185 - KALIMANTAN, K2005*VOORDELTA, K2005*NL-KUST, A884 - OOSTENDE
A876 - PPS IMAGES, A953 - GRENADA, A1010, A1017, I1006, A861 - PIPELINE, A1050 - KP NUMBERS
A1054 - NOORDZEEKANAAL, A1052 - BAJA CALIFORNIA, A279 - EUROSION, A997 - TAIWAN, R3012 - HYDROBASE, A1066
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
54 - 76 - Support for various projects by order of ACRB, ALKYON, ARGOSS, RIKZ, and INFRAM - 2002
- . - . -

* * * 2003 * * *

EUROPIPE - ACCUMER EE, EDAM, A289, CLEAVER BANKHIGH, A1083 - CALYPSO PIPELINE, M1100 - HYDROBASE PROMO
A1114, P35 - VOLKERAKSLUIZEN, A1087 - BEIRUT, A1131 - GENDT, A1136 - GBS - SAKHALIN, A1047 - MERSIN
A1178.10 - BRAAKMANHAVEN, M1120 - SHIP-NAVIGATOR, A1023
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
77 - 91 - Support for various projects by ACRB, RWS, ARGOSS, ALKYON and BOOGAARD N.I. - 2003
- . - . -

* * * 2004 * * *

A1251 - NEW ROSS, A1136 - GBS - SAKHALIN, A1236 - KURIK, DELTA SYNERGIE, A1008 - CONAKRY
A1230 - PANAMAX, A1264 - JETTY, A1284 - NEARSHORE WINDPARK, A1083.30 - CALYPSO, A1242 - WINDPARK
A237 - BRASS RIVER, PRINSES MARGRIET KANAAL, A1355 - CONVERT DWG > TEK, P52 - HEEL-MAAS, A1286.10
A1348 - ROOMPOT, A1383 - MUIDEN
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
95 - 118 - Support for various projects by ALKYON, ARGOSS, INFRAM and BOOGAARD N.I. - 2004
- . - . -

* * * 2005 * * *

SAR-DATA CALIBRATION
SAR-DATA CALIBRATION
by order of ACRB - March-April 2005
- . - . -

Sakhalin - Gravity Based Structure (GBS) - PA-B PLATFORM - © POSH Terasea Offshore Pte Ltd.
Sakhalin - Gravity Based Structure (GBS) - PA-B PLATFORM
The Piltun-Astokhskoye-B (PA-B), the largest platform of the Sakhalin-2 project, is a drilling, processing
and production platform that has been extracting oil and associated gas from the Piltun reservoir since 2008
Four legged concrete gravity base substructure (CGBS)
- . - . -

PA-B SAKHALIN CGBS - survey 2005
PA-B   SAKHALIN CGBS - survey 2005
by order of ALKYON
- . - . -

PA-B SAKHALIN CGBS - surveys 2005 - impression by PATS-2017
PA-B   SAKHALIN CGBS - surveys 2005 - impression by PATS-2017
by order of ALKYON
- . - . -

PUERTO AMERICA, SAKHALIN-GBS, PAJAROS, PA-B PLATFORM, WINDPARKEN NOORDZEE, FROY-FRIGG KP-ROUTE,
"DE RUYTER", SAR-DATA CALIBRATION, WINDPARK EVELOP,
ZONA PORTUARIA SIMON BOLIVAR, BAHREIN, ST MAARTEN, ABU DHABI, MAASVLAKTE
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
119 - 142 - Support for various projects by order of ALKYON, ACRB and ARGOSS - 2005
- . - . -

* * * 2006 * * *

BBL-potlood - sand waves along route
SAND WAVES ALONG ROUTE
by order of ACRB
- . - . -

SAKHALIN, SAND WAVES/NORTH SEA, PASCAGOULA, GASUNIE-TONTEN, ZONA PORTUARIA SIMON BOLIVAR,
HARLINGEN-POLLENDAM, SURINAME RIVIER, MARSEILLE, GBS, ALINHAMENTO, PROJECT P089
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
143 - 170 - Support for various projects by order of ALKYON, ACRB and BOOGAARD N.I. - 2006

Friday, March 31, 2006 2:44 PM

Hi Pats,

I came across your website while searching out Vollenhove on the internet.
Being a Vollenhove resident, I was wondering if you could help me?
I am planning to visit Vollenhove on April 25th
to visit my uncle's war grave on behalf of my family.
I will be traveling from Canada.
My Uncle (Jack Gibbs) is buried in De Voorst cemetery, shot down at age 19.
.................
I only speak English; will that be a problem getting around the town in general?
Many thanks for your assistance and reply.

Brenda Gibbs


E-mail Brenda Gibbs - 31 March 2006

This "OUT OF THE BLUE" e-mail of Brenda Gibbs was the start of my WWII research

Volunteer WWII research - 2006
- . - . -

PATS - Alpe d'Huez - 05 Jul 2006
PATS - Alpe d'Huez (1820 m) - Wednesday 05 Jul 2006
Climbing Alpe d'Huez for the 7th time, three days later there was #8 in my 4th Marmotte (175km)
Marmotte 2003 (bronze) - 2004 (silver) - 2005 (bronze) - 2006 (bronze) in category F (50-60)
Shirt design "SINKE" by PATS
9-speed cassette and triple crankset were always customized for my 90+ kg - no standard for me ;)
. . . . . . . . . . . . . . . . . . . . . . . . .
image at Hairpin 2 - by Photo Breton
- . - . -

* * * 2007 * * *

AGADIR, KARACHI, A 1686, AÇU, KIMSTERGAT, EEMS/DOLLARD, MALYSIA, AZZAWIYAH
PAJAROS TERMINAL, TEPORTI, MEERLO-WANSSUM, CONRANTIJN RIVIER, CASTELLON, STATOIL/KOLLSNES-ZEEBRUGGE
A 1850, EEMSHAVEN, COMBIWAND IJMUIDEN, GRIMSBY, A 1948, SELANGOR, SCHELPHOEK, A 1941, BP MCL PIPELINE
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
171 - 191 - Support for various projects by order of ALKYON, ACRB and BOOGAARD N.I. - 2007

Map - The Netherlands - with 50x50 mi area
Map of the Netherlands - 6 crash locations - 50x50 mi search area (cyan extra border is 2.5 mi)
The six crashes (6) on this map can be found at macr-12109.htm page
!!! be aware !!! 181 pages long !!!


VOLUNTEER WWII RESEARCHER - AREA VOLLENHOVE - THE NETHERLANDS
Member of Dutch Air War Study Group 1939-1945 - SGLO
MEMBER - APRIL 2007 - DUTCH AIR WAR STUDY GROUP 1939-1945

Volunteer WWII research - 2007
- . - . -

* * * 2008 * * *

3 4   R O U N D   T R I P S   T O   N O R T H  A M E R I C A
!!! NONE WERE BUSINESS OR WWII RELATED IT WAS ALL PLEASURE !!!
CANADA - USA- MEXICO - 34 times from 1979 to 2008 - by PATS
CANADA - USA- MEXICO - 34 times from 1979 to 2008 - by PATS
31 Airports - Out of the 50 states I did visit 40 so far
Further 6 provinces of Canada and a visit to Ciudad Juarez (Mexico)
Transport was done by plane, taxi, car, bus, train, ferry, bicycle and some hitchhiking in ON, BC and SK
I took my bicycle 6 times overseas - 3 x Peugeot and 3 x Koga Miyata GTR
- . - . -

BP MCL PIPELINE - A2008, HARBOUR DJEN, POSTER-SAN-DIEGO, SCREENSAVER-ALKYON, MOHAMMEDIA
POINTE-NOIRE, HARBOUR SUR, HACKENSACK, NJ, LAUWERSOOG
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
192 - 201 - Support for various projects by order of ALKYON - 2008

Volunteer WWII research - 2008
- . - . -

* * * 2009 * * *

NADOR - MOROCCO
NADOR - DTM
Nador 3D example - projected harbour layout on height model
DWG and DEM data - via (c) GlobalMapper

ADRIATIC LNG, TOURNAI, ARZEW, SACHALIN I, DE RUYTER, ARNHEM, GBS SCOUR PROTECTION, AMBRIZ
BEIRUT, HACKENSACK, A2338 - MATTRESSES, A2242, A2275 - NADOR, BARROW ISLAND
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
202 - 220 - Support for various projects by order of ALKYON and ACRB - 2009

Volunteer WWII research - 2009
- . - . -

* * * 2010 * * *

SAKHALIN I, HACKENSACK, INTERCONNECTOR, WILLEMSTAD, RIFFGAT, SCARBOROUGH GBS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
221 - 231 - Support for various projects by order of ARCADIS-ALKYON - 2010

Volunteer WWII research - 2010
- . - . -

* * * 2011 * * *

LIWAN-PIPELINE, IJMUIDEN-AVERIJHAVEN, SAKHALIN, TOBAGO, ITAJAI
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
232 - 238 - Support for various projects by order of ARCADIS-ALKYON and BMT-ARGOSS - 2011

Volunteer WWII research - 2011
- . - . -

* * * 2012 * * *

ARCHIVE, SEA CHARTS, HARELBEKE, AMS-RIJNKANAAL, IJSSELMEEER, MONTEVIDEO, DAREEN PORT
POWER-CHINA, RANGOON RIVER, SHOGIBA OIL JETTY, ITAJAI
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
239 - 260 - Support for various projects by order of ARCADIS-ALKYON - 2012

Volunteer WWII research - 2012
- . - . -

* * * 2013 * * *

M E R S E Y - L I V E R P O O L - U N I T E D   K I N G D O M
Mersey - Liverpool, U.K.
Visualize depth of Mersey, Liverpool, U.K. - by order of BMT ARGOSS - APR 2013
All supplied data verified, transformed and optimized for further use in right format

D O H A - Q A T A R
Port of Doha, Qatar
Visualize depth around Doha, Qatar - by order of ARCADIS - JUN 2013
All supplied data verified, transformed and optimized for further use in right format

BLACK SEA, SEE CHART, ARAB GULF, LIVERPOOL
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
261 - 267 - Support for various projects by order of BMT ARGOSS and ARCADIS-ALKYON - 2013

Volunteer WWII research - 2013
- . - . -

* * * 2014 * * *

J U B A I L - S A U D I   A R A B I A
Jubail, Saudi Arabia
Visualize depth around Jubail - by order of ARCADIS - JAN 2014
All supplied data verified, transformed and optimized for further use in right format

BLACK SEA, JUBAIL, LIMA
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
268 - 270 - Support for various projects by order of BMT ARGOSS and ARCADIS-ALKYON - 2014

Volunteer WWII research - 2014
- . - . -

* * * 2015 * * *

S A B B A T I C A L

Volunteer WWII research - 2015

"S T R A T E M A K E R   O P   Z E E"

65 y 3 m - Official retired - December 2015

"Honestly, I was already acting as retired for a long time ;) ~2006"

- . - . -

2010 - M A N T E L Z O R G E R - 2016
Season's Greetings - MOM - PATS - 15 Nov 2015 - photos by Tony Destro II
Season's Greetings - MOM - PATS - 15 Nov 2015 - photos by Tony Destro II
Collage by PATS was send on 24 Dec 2015 to my friends
12 days later, on Jan 5th, 2016 - 19:45 PM my MOM passed away in her sleep at the age of 89
I dedicate ALL my RESEARCH to my MOTHER
Move cursor over image for 1951 impression

* * * 2016 * * *

"RIEKIE"
Obituary / overlijdensadvertentie Nieuwsbode
HENDRIKA SCHUURMAN - MOOIWEER
18 Sep 1926, Ambt-Vollenhove - 05 Jan 2016, Vollenhove - Age 89
R.I.P.

- . - . -

P O R T   M O R E S B Y - P A P U A   N E W   G U I N E A
Port Moresby - Papua New Guinea Port Moresby - Papua New Guinea
Visualize depth around Port Moresby - by order of ARCADIS - AUG 2016
All supplied data verified, transformed and optimized for further use in right format

MORESBY
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
271 - Support for this project by order of ARCADIS-ALKYON - 2016
- . - . -

I'M STILL REELING FROM THE HEARTWARMING LEVEL OF RESPECT SHOWN
by the townspeople to my Uncle Jack and his comrades' war graves
Arrived home safely - 05 May 2016
Arrived home safely - 05 May 2016
via Brenda Gibbs - 07 May 2016 - photo and text (c) Martin van der Linde (OSC)

More than 30,000 hours of volunteer WWII research - - - 'Milestone for Per Address Teun Schuurman (PATS)'
Meer dan 30.000 uur vrijwilligerswerk WO II onderzoek - - - ‘Mijlpaal voor Per Adres Teun Schuurman (PATS)’
PATS - WWII Research - Mijlpaal - by (c) Marjolein Lolkema
WO II onderzoek door PATS - WWII Research by PATS - by (c) Marjolein Lolkema
See Dutch article in Brederwiedekrant - MIJLPAAL - 30.000 UUR (opens in new window)

Volunteer WWII research - 2016
- . - . -

14 Oct 2016 - Geomatics Business Park renamed to DYNTES Tech Park
- . - . -

* * * 2017 * * *

‘H E T   G A A T   O M   O O R L O G S F E I T E N’
PATS - WWII Research - Oorlogsfeiten - photo by (c) Cees Walinga - 13 Apr 2017
PATS - WWII Research - photo by (c) Cees Walinga - 13 Apr 2017
See Dutch article - 03 May 2017 - in De Noordoostpolder - OORLOGSFEITEN (opens in new window)

P A N D O R A   B O X   W E L L I N G T O N   R 1 7 5 7
PANDORA BOX - R1757 - 03 Aug 2017
PANDORA BOX - R1757 - photo by (c) PATS - 03 Aug 2017
See Dutch article - 30 Aug 2017 by (c) Margé Hof-Noordmans of Margé Hof Publicaties - mhpublicaties.nl
PATS completes photo album Wellington R1757 (opens in new window)

PATS - WWII researcher since 2006 - SGLO Member since Apr 2007

Volunteer WWII research - 2017
- . - . -

@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @

Dear readers and former colleagues, any additional info is welcome

Special interest for the old issues of WL-INTERN, HIJDRO DELFT and ANNUAL REPORTS of Delft Hydraulics Laboratory

And last but not least, thanks to all former colleagues
. . . . . . . . . . . . . . . . . . . . . . . . .
Best wishes, Teunis Schuurman a.k.a. PATS

+31.527.242316



!!! under construction !!! - info PATS - 14/Dec/2017

- PATS GRAPHICS DESIGN - Voorsterweg 28-P2 - 8316PT Marknesse - tel. +31-527-242316 -

- days - at this inspiring location

Valid HTML 4.01 Transitional
- W3C Markup Validator -
Valid HTML 4.01 Transitional


DYNTES TECH PARK - aerial by (c) Martin Daniëls
- AERIAL VIEW - DYNTES TECH PARK - (c) Martin Daniëls - 2016

Back to HOME-no-frame or HOME-with-frame ---- Personal
